Bodet-Time

Backlit for better readability.

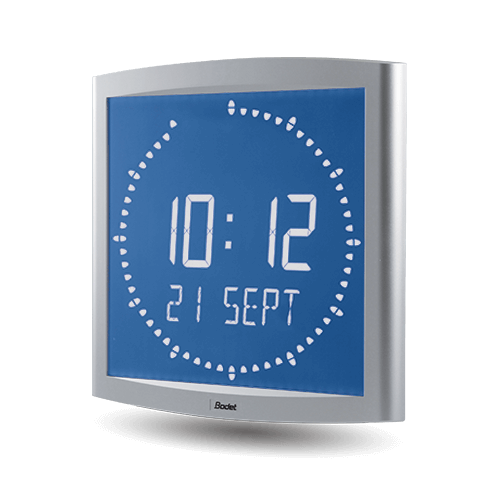

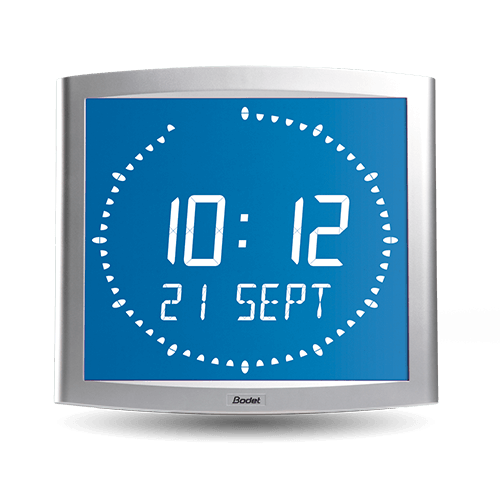

Backlit LCD clock - Opalys Ellipse

An elegant style, modern lines, a backlit LCD screen and an original seconds display, the Opalys Ellipse stands out from other LCD clocks.

Request a quote

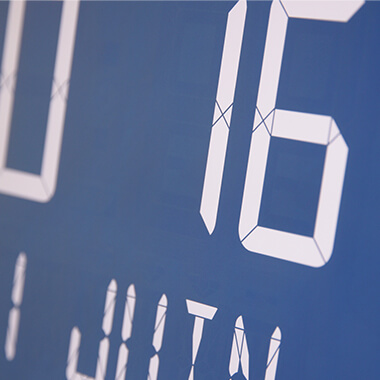

A timeless design for the Opalys Ellipse clock


A display that is understated, elegant..

With an aesthetic focus on understatement, the Opalys Ellipse is has a distinct visual impact. Its extra-flat case gives it a pure and modern line. Its glass face and aluminium-coloured frame offer it an air of elegance. Its backlit LCD display highlights the various types of information shown.

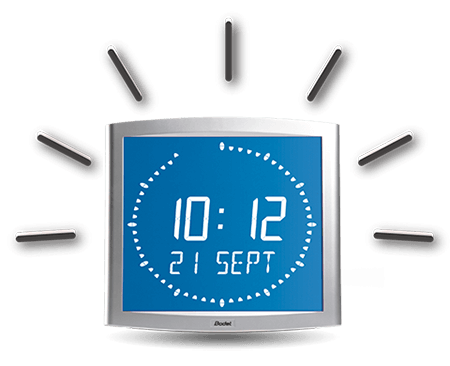

The Opalys Ellipse is backlit and remains bright in the dark.

... and bright

Designed to display the time with its backlit liquid crystals, the Opalys Ellipse remains bright, even in the dark. For better visibility, its backlit LCD screen brings contrast and brightness to this clock. And there’s one more special feature: the second markers light up one by one with each new minute.

Download the brochure

Displays available

Seconds display available

Seconds
Yes

No day of week display available

Day of week
No

Day number display available

Day number
Yes

Week number display available

Week number
Yes

Date display available

Date
Yes

Multilingual date display available

Multilingual date
Yes

Digital date display available

Numeric date
Yes

Temperature display available

Temperature
Yes

Text display available

Text
Yes

No display of event countdown available

Event countdown
No

No day countdown display available

Day countdown
No

Stopwatch
No

Adjustable luminosity
No

Technical information

  • Dimensions: 32.1 cm x 29.4 cm
  • Display mode: 12 hours or 24 hours
  • Character height: 6 and 3 cm
  • Optimal viewing distance: 30 m
  • Reading angle: 160°
  • Eco mode: Yes
  • Use: Indoor
  • Time distribution: DHF, NTP, AFNOR, Impulse, ALS 162/DCF.
  • Waterproof: No
  • Recess-mountable: No
  • Time change: Auto
  • Wall mounting: Yes
  • Ceiling mounting: As an option
  • Mast mounting: As an option
  • Power supplies:
    • AFNOR, DHF wireless, Independent, 24 V minute / ½ minute series impulse: 230 VAC ± 10% 50/60 Hz
    • NTP : POE (Power over Ethernet)

Are you interested in the Opalys Ellipse ?

Request a quote Generate technical specifications
