Possible markings
Arabic figures
Minute notches
DIN

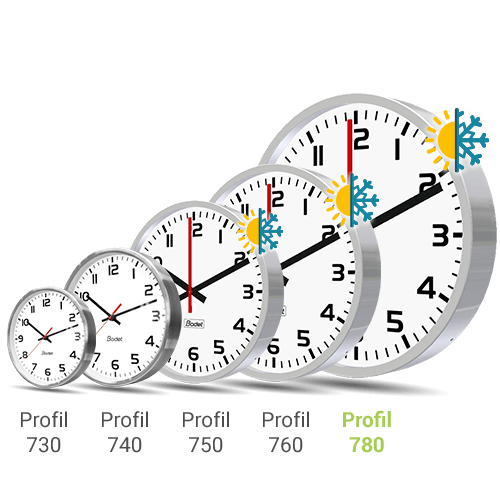

The largest of our metal clocks

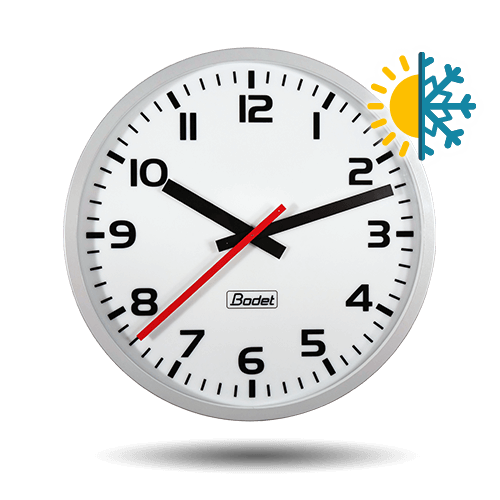

Outdoor metal analogue clock – Profil 780
The Profil 780 metal clock is developed specifically for the needs of outdoor environments in railway stations and marine terminals and can withstand the harshest weather conditions.
Resistant to all external stresses

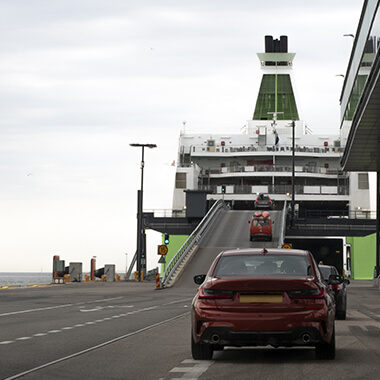

Ideally located on the façade of larger underground metro stations, at the entrance of smaller train stations or even on marine boarding platforms, the Profil 780 provides an accurate time display for all passengers. Its 80-cm diameter dial is designed to be read from a distance, from up to 80 m away, by day or night thanks to its integrated LED strip (as an option).

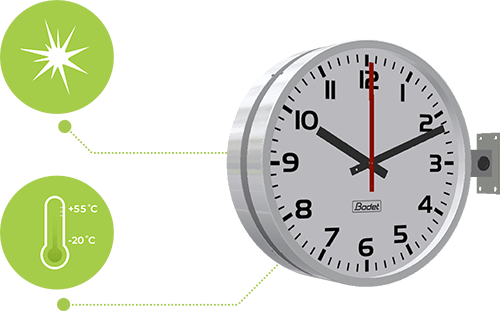

Both understated and timeless, this analogue clock with aluminium bezel can be suited to all architectural styles with its customisable dial (Arabic figures, DIN or minute notches) and its hour, minute and second hands (option choices). Designed to cope with all weather extremes, it is protected against temperatures between -20°C and +55°C as well as heavy tropical rains, satisfying the most stringent water ingress tests (IP65 as an option).
A reliable, accurate and identical time display on all clocks
To satisfy the specific requirements of railway stations, bus stations, marine terminals, or underground metro stations, the Profil 780 offers a choice of three time distribution methods:
- Impulse time distribution (24V minute parallel)
- AFNOR time-coded time distribution providing amplitude up to 30 km
- NTP time distribution
Opting for time distribution by NTP protocol guarantees the smooth operation of each clock. Connected to the building's IT network, the Profil 780, with its integrated SNMP monitoring protocol, provides remote detection of anomalies, meaning reducing the maintenance costs.
Technical information

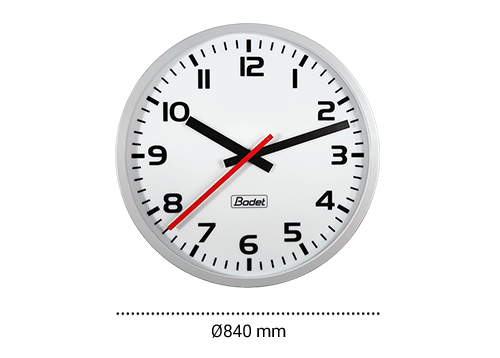

- Diameter: 84 cm
- Display mode: 12 hour
- Viewing distance: 80 m
- Eco mode: No
- Use: Outdoor
- Operating temperature: -20°C to +55°C
- Time distribution: Minute impulse, AFNOR, NTP, DCF, GPS
- Waterproof: Yes: IP54 (as an option: IP65)
- Recess-mountable: No
- Time change: Auto
- Wall mounting: Yes
- Ceiling mounting: Yes
- Mast mounting: Yes
- Power supplies:
- AFNOR: 230 ~
- NTP: POE (Power over Ethernet)
Are you interested in the Profil 780 ?
